Manufacturers of Pipe Fittings and Flanges in Mumbai, India.
"Manufacturers, Suppliers and Exporters of Stainless Steel, Carbon Steel, Alloy Steel, Duplex & High Nickel Alloy Olets in Mumbai, India".

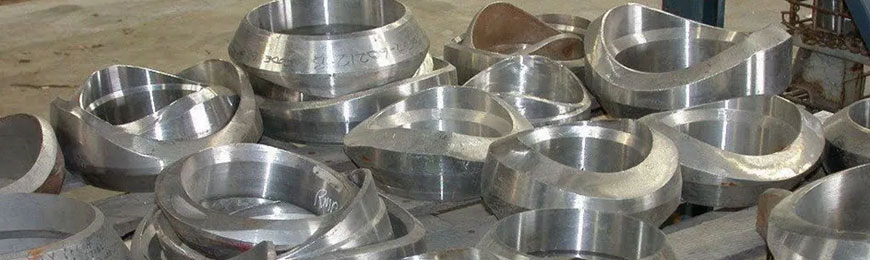

An outlet pipe fitting is a connecting that provides a branch to a large diameter pipe with a small diameter pipe. The Outlet Fittings are welded on the run pipe and are commonly used for creating branch pipe connections. The fitting are reliable and have a longer service life in the system. Astm a105 Outlet is forged fitting that works in elevated or ambient temperature and pressure conditions.
A Threaded Flexolet has threads that allow them to align with other piping systems. The flexolet aims to reduce the number of fitting sizes in the outlet. The SwFlexolet is seen in reinforced fitting allowing them to connect following traditional methods.
| Standards | ANSI/ ASME B16.11/ MSS-SP-97/ MSS-SP-83/ MSS-SP-79/ MSS-SP-95 |
| Range | 1/8” upto 4” |
| Pressure rating | 3000LBS, 6000LBS, 9000LBS |
| Coating/ Painting | ANTI-RUST PAINT |
| Heat Treatment | According to the Standard of material |
| Type | Socket Weld (S/W) & Screwed (SCRD), Threading outlet, Lateral Outlets, Welding Outlets, Sockt Weld Outlets, Nipple Outlets, Sweep outlets. |
| Thickness | SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S |
| Stainless Steel Olets |
| ASTM A182 F304, F347, F304H, F309, F316, F304L, F316L, F317L, F310, F321, F904L. DIN 1.4301, 1.4306, 1.4401, 1.4571, JIS SUS304,SUS304, SUS304L, SUS316, SUS316 |
| Duplex & Super Duplex Steel Olets |
| ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 (UNS S31803, S32205, S32750, S32760) Duplex 2205, Super Duplex 2507 |
| Carbon Steel Olets |
| ASTM A105/ SA 105N, A694 Grade F46/ F52/ F42/ F60/ F56/ F65/ F70. |
| Alloy Steel Olets |
| ASTM A182 F11/ F22/ F91/ F1/ F5/ F9 |
| Nickel Alloy Olets |
| Nickel 200, Nickel 201, Monel 400, Monel K500, Hastelloy C22, Hastelloy C276, Hastelloy C2000, Hastelloy B, Inconel 600, inconel 601, Inconel 617, Inconel 625, Inconel 718, Inconel 725, Inconel X-750, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 926, Incoloy 890, Incoloy 925, Incoloy A286 |
| Titanium Olets |
| Titanium Grade 2, Grade 5, Grade 7 |
Manufacturers of Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel & High Nickel Alloy Butt weld Pipe Fittings, Flanges, Forged Fittings in Mumbai, India.
